SPEL Puraceptor

Image Gallery

Video Gallery

Puraceptor P.002 - 2 Liter per Second

P.002.C1.2C.A.100.PVC

P.002.C1.2C.A.100.PVC.AG

SP16-PC10980-S

Puraceptor P.004 - 4 Litre per Second

P.004.C1.2C.A.150.PVC

SP14-PC5660-S

Puraceptor P.006 - 6 Litre per Second

P.006.C1.2C.A.100.AG

SP16-PC2810-S

Puraceptor P.008 - 8 Litre per Second

P.008.C1.2C.A.150.PVC

SP14-PC6580-S

Puraceptor P.010 - 10 Litre per Second

P.010.C1.2C.A.150.PVC

SP14-PC6690-S

Puraceptor P.015 - 15 Litre per Second

P.015.L.C1.2C.A.150.PVC

P.015.S.C1.2C.A.150.PVC

SP14-PC10650-S

Puraceptor P.020 - 20 Litre per Second

P.020.8.C1.2C.A.225.PVC

P.020.C1.2C.A.300.PVC

Puraceptor P.030 - 30 Litre per Second

P.030.C1.2C.A.300.PVC

SP15-PC1780-S

Puraceptor P.040 - 40 Litre per Second

P.040.C1.2C.A.300.PVC

P.040.8.C1.2C.A.300.PVC

Puraceptor P.050 - 50 Litre per Second

P.050.S.C1.2C.A.300.PVC

P.050.L C1.2C.A.300.PVC

P.050-5-20.C1.2C.A.300.PVC

P.050-5-25.C1.2C.A.300.PVC

P.050-5-30.C1.2C.A.300.PVC

P.050-5-35.C1.2C.A.300.PVC

P.050-5-40.C1.2C.A.300.PVC

P.050-5-45.C1.2C.A.300.PVC

P.050-5-50.C1.2C.A.300.PVC

P.050-5-55.C1.2C.A.300.PVC

P.050-5-60.C1.2C.A.300.PVC

P.050-5-65.C1.2C.A.300.PVC

P.050-5-70.C1.2C.A.300.PVC

P.050-5-30.C1.2C.A.300.PVC

P.050-5-35.C1.2C.A.300.PVC

P.050-5-40.C1.2C.A.300.PVC

P.050-5-50.C1.2C.A.300.PVC

P.050.S.C1.2C.A.300.PVC

P.050.L.C1.2C.A

Puraceptor P.060 - 60 Litre per Second

P.060.L.C1.2C.A.300.PVC

P.060.S.C1.2C.A.300.PVC

SP15-PC2350-S

Puraceptor P.070 - 70 Litre per Second

P.070.L.C1.2C.A.300.PVC

P.070.S.C1.2C.A.375.PVC

P.070.S.C1.2C.B.375.PVC

Puraceptor P.080 - 80 Litre per Second

P.080.C1.2C.A.300.PVC

P.080.L.C1.2C.A.300.PVC

Puraceptor P.090 - 90 Litre per Second

P.090.C1.2C.A.300.PVC

Puraceptor P.100 - 100 Litre per Second

P.100.C1.2C.A.300.PVC

Puraceptor P.110 - 110 Litre per Second

P.110.C1.2C.A.300.PVC

Puraceptor P.150 - 150 Litre per Second

P.150.C1.2C.A.300.PVC

Puraceptor P.180 - 180 Litre per Second

P.180.C1.2C.A.300.PVC

Puraceptor P.220 - 220 Litre per Second

P.220.C1.C2.A.450.RCP

SPEL Puraceptor is a full retention separator that treats all flows. It is to be sized to contain more than the anticipated maximum oil spillage — enabling it to be fully operational in treating stormwater runoff at all times. It has two chambers, a coalescer and is fitted with an automatic closure device specifically designed to contain major oil spills, thereby making it suitable for high-risk applications. It achieves a water discharge quality of less than 5mg light liquids per litre, complying with European Standard BS EN 858.1. 2006. Treatable flow rates range from 2LPS to 200LPS. Pipe sizes range from 100mm to 450mm (larger sizes on request).

Contact the Stormwater Specialists
Response within 6 hours

Key Advantages

Automatic Closure Device

The Automatic Closure Device (A.C.D.) is precisely engineered to be sensitive to any change in water density, as a consequence of light liquids build up. This automatically activates a process of depressing the A.C.D. to shut off the separator, preventing pollutants from discharging to drains and waterways

Full retention

All liquid is treated. There is no by-pass operation.

Coalescer equipped

Provides a coalescing process for the separation of smaller globular light liquid pollutants to reduce the light liquid content in the outlet to 5mg/litre or less.

Inlet dip pipe–flame trap

This provides minimum turbulence and prevents fire and inflammable vapours passing through to the drainage system.

SPEL Puraceptor Oil Spill Animation

Two chamber

A non-turbulent flow, through two horizontal treatment chamber, utilises the underflow principle to retain light liquids in all flow conditions.

Containment chamber: Where Total Suspended Solids (TSS) silt, sediments, sludge and gross pollutants are trapped and settle on the chamber floor and where light liquids are contained.
Coalescer chamber: Where light liquids separation is enhanced reducing it to 5mg/litre or less prior to discharge.

Gravity operated

Will function in the event of power failure and fits into existing pipe drainage systems or new sites.

Maintenance

Easy and safe, with no entering of the tank required.

2 Chamber or Single Chamber

In a single chamber oil-water separator, the Coalescer is exposed to the hydrocarbon spill and therefore treatment efficacy is compromised.

In a spill situation, the single chamber system will not retain the stormwater discharge quality that these systems are installed for.

Why choose a single chamber?

The single chamber is a cost effective unit for use on service stations, however the application should be carefully selected.

These systems are suitable for use within areas that will not receive direct rainfall (under canopy) as they can only treat low flows.

The other cost to weigh up is that they have no guarantee discharge quality in the situation of a spill.

Two chamber are Better than One!

Why choose the 2 chamber Puraceptor?

As the 2 chamber Puraceptor has been tested and proven in Australia, both in the lab and field, it complies with Australian regulations and guidelines and will provide a guaranteed water quality in spill conditions.

Due to the superior Coalescer design and the fact that the Auto Closure Device (ACD) operates as a separate function to the Coalescer, the 2 chamber Puraceptor is the choice of over 99% of sites in Australia.

SPEL Puraceptor (Two chamber)

Guaranteed water quality in spill conditions
Tested & proven in Australia both lab and field
Suitable for high risk areas
Superior Coalescer design
Auto Closure Device to protect the Coalescer
Enough Spill Containment Capacity during storm event
Considerable saving on Pump out Costs
Easy & cheap maintenance
Oil Alert Probe for Safety
Flame Trap
Functional in tidal condition
Minimum turbulence

Spillceptor (One Chamber)

Cannot guarantee to maintain BS EN 858 water quality in major spill scenario
Medium risk oil/fuel storage and handling areas
Cheaper option but high risk of failure in water quality when major spill occurs
Coalescer not protected from spill and therefore water quality discharge cannot be guaranteed
Pump out saving
Oil Alert Probe for Safety
Limited Spill Containment Capacity
Reduced Treatment Zone
No “Quiescent” Zone

Applications

Power stations
Substations and switchyards
Mining and heavy vehicle
Windfarms
Waste transfer depots
Re-fuelling areas
Service stations
Asphalt plants

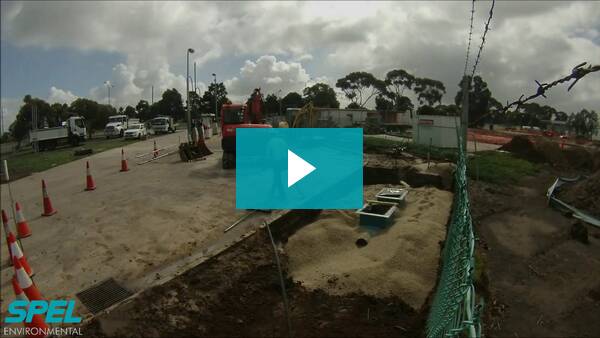

SPEL Puraceptor Installation

Coalescer Units

Coalescer units are easy to maintain and easily washable even without maintenance for years.

It provides a coalescing process for the separation of smaller globular light liquid pollutants to reduce the light liquid content in the outlet to 5mg/litre or less.

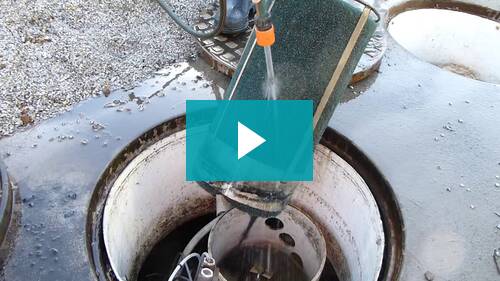

Cleaning Coalescer Units
